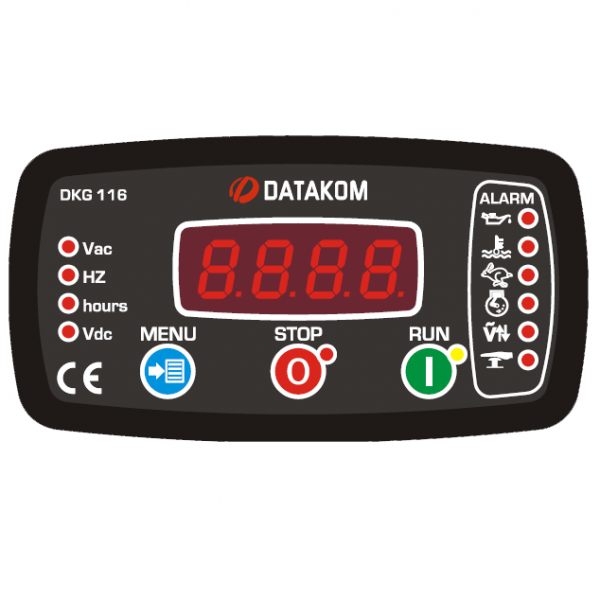

DKG116 Manual And Remote Start Unit

DATAKOM

Key Features

  • Both Manual and remote control
  • Generator protection
  • Built-in alarms and warnings
  • Remote Start operation available
  • True RMS measurements
  • Tamper-proof engine hours display
  • Field adjustable parameters
  • High current Fuel and Crank outputs
  • Optional auxiliary output
  • Optional magnetic pickup input
  • Digital inputs: 4
  • Survives cranking dropouts
  • Sealed front panel
  • Standard panel dimensions: 96x48mm
  • Plug-in connection system
  • Click Here To Download DKG116 User Manual

 10,500.00  13,000.00

Buy all Datakom products like generator controllers, energy meters,  panel meters,  synchronization controllers, auto mains failures (AMF), auto transfer switches (ATS), generator battery chargers etc, online in Pakistan. You can buy DKG116, a manual and remote start unit online, or by visiting Electronic Power House (EPH) and Tetralink Technologies (TLT) in Lahore who are authorized distributors of Datakom in Pakistan. All original Datakom products are available at very reasonable and best prices in Pakistan.

Features

  • Both Manual and remote control
  • Generator protection
  • Built-in alarms and warnings
  • Remote Start operation available
  • True RMS measurements
  • Tamper-proof engine hours display
  • Field adjustable parameters
  • High current Fuel and Crank outputs
  • Optional auxiliary output
  • Optional magnetic pickup input
  • Digital inputs: 4
  • Survives cranking dropouts
  • Sealed front panel
  • Standard panel dimensions: 96x48mm
  • Plug-in connection system

Description

The DKG-116 is a low cost, a comprehensive unit designed to start and stop a generating set both manually and remotely. The unit is suitable for both gasoline and diesel Gensets. The standard unit controls gasoline engines. Diesel engine control is selected with a wire jumper connection.
The manual control is made using RUN and STOP pushbuttons on the front panel. The remote control is made via the REMOTE START input signal.
When the engine is running, the unit monitors fault conditions and shuts-down the engine automatically in the occurrence of an alarm. The alarms are
identified by a group of LEDs displaying only the first occurring one. The MENU button selects the display parameter scroll and allows program mode entry and lamp test functions. The unit provides a set of digitally adjustable program parameters. All parameters are modified through front panel pushbuttons. The FUEL output is programmable for ‘Activate to start’ or ‘Activate to stop’ solenoids. The optional auxiliary output may be programmed for alarm, choke, preheat or stop functions. The total engine run hours are kept in a tamper-proof non-erasable memory which is not affected by power failures. An optional MPU input is provided for fast crank cutting. The unit is designed for front panel mounting. Connections are made with 2 part plug and socket connectors. The unit is only available in 12V version.

Programming

Both High Temperature and Emergency Stop inputs must be connected to Battery negative prior to enter the programming mode.
The program mode is entered by long-pressing the MENU button. Each depression of the MENU button will switch to the next parameter.
Another long press will enable the lamp test mode. Another press on the MENU button will return the display to normal mode.
The below parameters can be set as required:
AC voltage low limit: 70 to 500 VAC (Ph-N)
AC voltage high limit: 70 to 500 VAC (Ph-N)
MPU crank-cut frequency / 4: 0-1000Hz
Nominal frequency: 0=50Hz 1=60Hz
Oil switch type: 0=oil pressure 1=oil level
Fuel relay function: 0=Activate to start 1=activate to stop.
Auxiliary relay function: 0=Alarm, 1=choke,
2=stop, 3=preheat.
Choke timer: 0 to 15 sec.
Number of phases: 0=1ph 1=2ph 2=3ph 3=3ph

Connection Diagram

Click Here To Download DKG116 User Manual



brands

DATAKOM

color

Black

Technical Specifications

Alternator voltage: 15 to 300 V-AC (Ph-N)
Alternator frequency: 50 or 60 Hz nominal.
Measurement Accuracy: 0.5% + 1 digit
Overspeed: nominal frequency + 14%
(+24% overshoot)
Underspeed: 30 Hz
Crank time: 10 sec.
Crank rest: 10 sec.
Crank attempts: 3
Stop timer: 10 sec.
Cooldown timer: 30 sec.
Holdoff timer: 10 sec.
DC Supply Range: 9.0 to 16.0 V-DC
Cranking dropouts: survives 0 V for 100ms.
Typical Standby Current: 12 mA-DC (display off)
Maximum Operating Current: 130 mA-DC
Fuel and Crank outputs: 10A @ 12V-DC
Auxiliary Output: 1A @ 12V-DC (negative pulling
protected semiconductor output)
Magnetic pickup Input: 1.5 to 30Vpp
Operating temp.: -40C (-40F) to 80 C (176F).
Maximum humidity: 95% non-condensing.
Dimensions: 102 x 55 x 40 mm (WxHxD)
Panel Cut-out Dimensions: 92×44 mm minimum.
Packed weight: 140 g
Case Material: High Temp. ABS/PC (UL94-V0)
IP Protection: IP65 (front panel), IP30 (rear)
Conformity (EU directives)
-2006/95/EC (low voltage)
-2004/108/EC (EMC)
Norms of reference:
EN 61010 (safety requirements)
EN 61326 (EMC requirements)
