GTR-168 Manual & Auto Genset Controller With Key Switch

8,500

Key Features

  • Automatic/Manual engine starting and stopping
  • Gas engine support
  • Emergency / Auxiliary engine shutdown
  • Low battery warning
  • Over speed shutdown
  • High water temperature shutdown
  • Low oil pressure shutdown
  • Survives cranking dropouts
  • Key switch to avoid unauthorized access
  • ATS Auto Start function by detecting ATS terminal 12 grounded
  • Plug-in connection system for easy replacement
  • Low cost
  • Small dimensions
  • Standard panel dimensions, (72x72mm)
  • Click Here To Download GTR-168 User Manual

Buy all generator controllers, AVRs, energy meters,  panel meters,  synchronization controllers, auto mains failures (AMF), auto transfer switches (ATS), generator battery chargers, etc.  in Pakistan. You can buy GTR-168 Manual & Auto Genset controller of Monicon online anywhere from Pakistan or by visiting Electronic Power House (EPH) and Tetralink Technologies (TLT)   in Lahore who are the main distributor and manufacturer of almost all of the Genset controllers & AVRs in Pakistan. All original geneset controllers & AVRs from all over the world are available at very reasonable and best prices in Pakistan.

Key Features

  • Automatic/Manual engine starting and stopping
  • Gas engine support
  • Emergency / Auxiliary engine shutdown
  • Low battery warning
  • Over speed shutdown
  • High water temperature shutdown
  • Low oil pressure shutdown
  • Survives cranking dropouts
  • Key switch to avoid unauthorized access
  • ATS Auto Start function by detecting ATS terminal 12 grounded
  • Plug-in connection system for easy replacement
  • Low cost
  • Small dimensions
  • Standard panel dimensions, (72x72mm)

Description

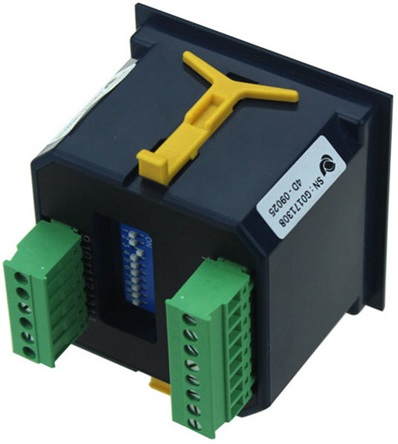

GTR-168 is low cost but multi-function diesel engine generator controller. It applies a key switch and provides 3 kinds of operation mode: Manual, Auto, Off. No special training is required due to the easy operation. Fault protection includes Emergency stop, Over-speed, High water temperature, low oil pressure, and Over crank. GTR-168 also displays the low battery voltage warning and indicates the running status and power status.GTR-168 equips with a high firm continental-type terminal that provides easy plug-in and removal. Furthermore, GTR-168 has 10 pins Dip switch for adjusting parameter according to system requirements, and make it not only reducing stock but also meeting the various system specifications. GTR-168 build-in 5 output powers relay which performs high power capacity reach to 5 Amp (DC) that saves the wring for connection with extra power relays. No matter in function, protection, or operating performance. GTR-168 is your best choice.

Click Here To Download GTR-168 User Manual

brands

Monicon

Color

Blue

Reviews

There are no reviews yet.

Be the first to review “GTR-168 Manual & Auto Genset Controller With Key Switch”
